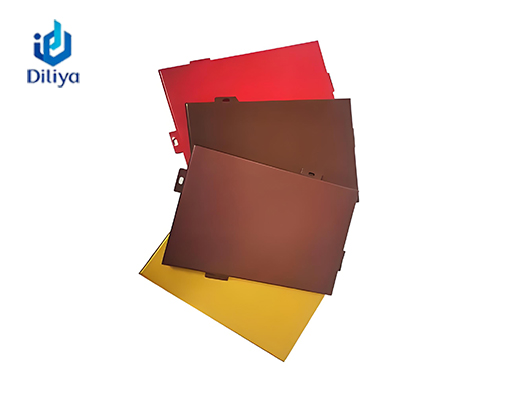

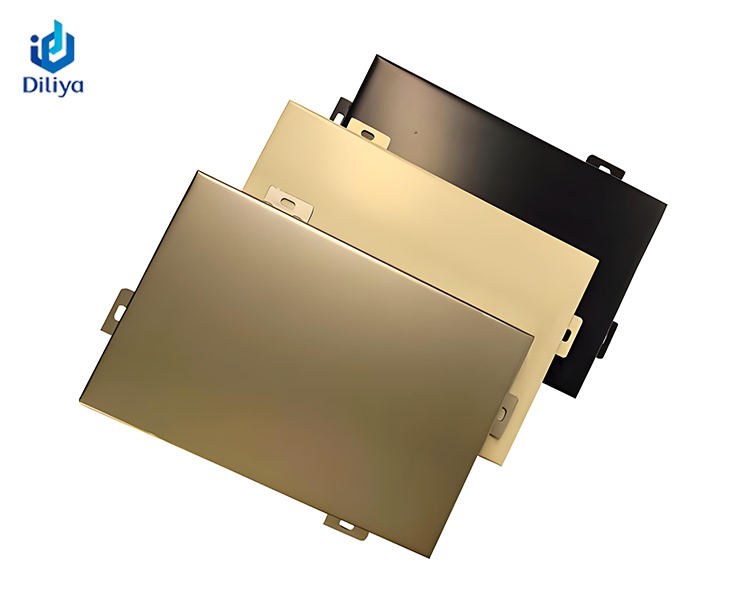

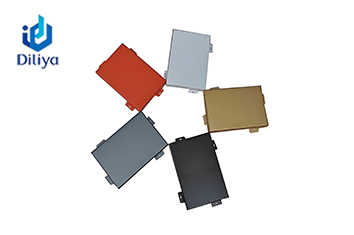

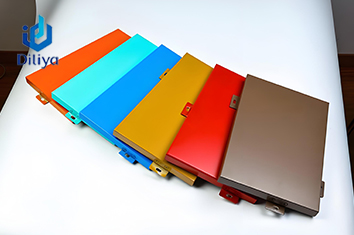

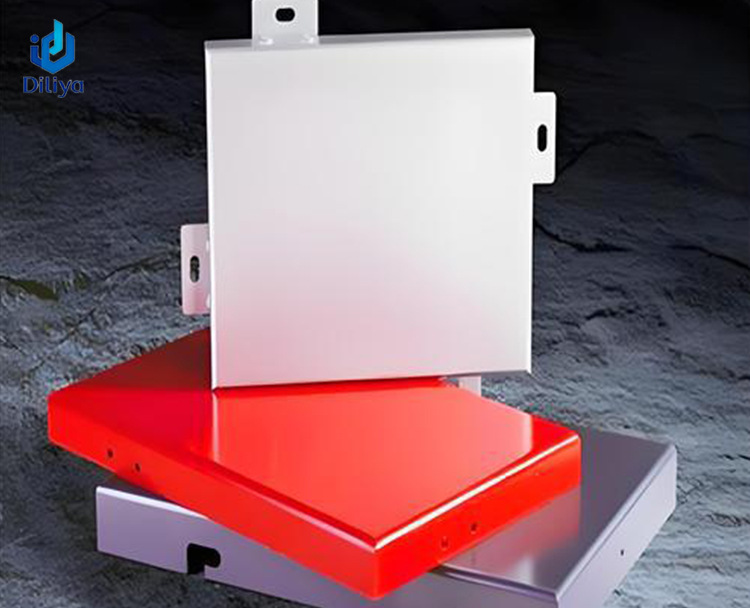

Solid Color Spray Aluminum Panel is a basic curtain wall decorative material with high versatility and cost performance in the architectural decoration field. Made of national standard high-quality aluminum alloy substrate, it is finely processed through precision CNC cutting, bending forming and stiffener reinforcement, matched with high-quality solid color surface spraying technology. The panel features a flat and smooth surface, uniform and pure color without color difference and spots, presenting a simple, elegant and high-grade texture. Abandoning complex shapes, it adapts to various architectural styles with neat and concise visual effects. With excellent performances of light weight, high strength, weather resistance, corrosion resistance, waterproofing and self-cleaning, it is a mainstream preferred material for modern building exterior curtain walls and interior fine decoration renovation.
Solid Color Spray Aluminum Panel usually adopts 3003 anti-rust aluminum alloy or 5052 high-strength aluminum alloy substrate with stable texture and excellent toughness. It has high flatness and is not easy to deform after forming, suitable for large-area wall paving. The conventional thickness ranges from 1.5mm to 4.0mm, and thickened panels can be customized according to building wind pressure, floor height and construction span. The whole production process adopts CNC precision equipment with accurate dimensions and uniform flanges. Large-size panels are equipped with built-in galvanized stiffeners to offset wind vibration and thermal expansion stress, avoiding panel bulging, warping and shaking. The surface adopts electrostatic powder spraying or PVDF fluorocarbon solid color spraying technology with dense and full paint film and strong adhesion, fully covering panel edges. It is dust-proof, stain-resistant, weather-resistant and aging-resistant, and any standard solid color and customized color can be provided.
|
Parameter Item |
Technical Specification |
|
Substrate |
3003 / 5052 High-quality Aluminum Alloy |
|
Thickness |
1.5mm–4.0mm (Customizable) |
|
Forming Process |
CNC Cutting, Precision Bending, Stiffener Reinforcement |
|
Surface Process |
PVDF Fluorocarbon Spraying, Powder Spraying |
|
Color Feature |
Pure Solid Color, Custom Color Matching, No Color Difference |
|
Wind Resistance |
Anti-deformation, Anti-vibration, Stable Structure |
|
Service Life |
PVDF: 20–30 Years | Powder Coating: 8–15 Years |
|
Installation |
Standard Dry Hanging Assembly |
Pure Color & High-grade Vision: With professional color matching technology, the panel presents full and uniform solid color without spots and color difference in large-area installation. The neat and minimalist facade adapts to modern, light luxury and municipal architectural styles perfectly.
Mature Process & High Cost Performance: Standardized mass production ensures high precision and stable quality. Without complex modeling procedures, it features controllable cost and strong practicability, suitable for most commercial decoration projects.
Stable & Deformation-resistant Structure: With sufficient rigidity and stiffener reinforcement, the panel effectively resists wind pressure and temperature deformation, avoiding bulging, warping and shaking during long-term large-area use.
All-weather Weather Resistance: The high-quality dense coating closely fits the panel surface and edges, resisting UV radiation, wind and rain erosion, salt spray and acid-base corrosion, maintaining stable color and performance for long-term outdoor use.
Lightweight & High Safety: Lightweight and high-strength aluminum alloy reduces building load greatly, improving the seismic and wind resistance of buildings, suitable for high-rise buildings and old building renovation projects.
Self-cleaning & Eco-friendly: The compact paint surface is not easy to accumulate dust and can be cleaned naturally by rainwater with low maintenance cost. Free of harmful substances and 100% recyclable, it meets green building energy-saving standards.

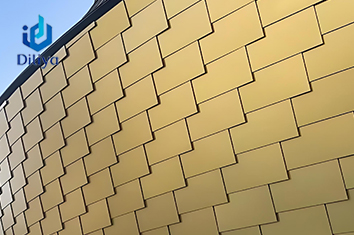

Solid Color Spray Aluminum Panel is the most versatile curtain wall decorative material with full-scene application. Exterior applications: municipal public buildings, office buildings, schools, hospitals, commercial complexes, hotels, bank outlets, factory facades and urban facade renovation projects. Interior applications: large engineering ceilings, corridor walls, exhibition background walls, elevator cladding, office partitions and indoor minimalist decorative surfaces. It is suitable for all simple, neat and commercial architectural decoration scenarios.
All solid color spray aluminum panels are standardized designed and integrally prefabricated in the factory with accurate dimensions, flat surfaces and unified color without batch color difference. Adopting industry-standard dry hanging assembly construction, it features convenient installation, uniform joints and neat overall facade. Full customization of plate thickness, size, color number and surface technology is available for accurate color matching according to project styles. Strict factory quality inspection ensures stable and reliable quality. We support large-batch engineering orders and provide full-process drawing deepening, technical docking, installation guidance and after-sales service to guarantee project quality.
Storage & Handling: Finished panels shall be stacked flat and classified with wooden or soft cushions at the bottom. Single-point heavy pressure, vertical placement and collision are prohibited to avoid surface depression, paint scratches and edge deformation. The storage area must be dry and ventilated, far away from acid-base, corrosive chemicals and humid environment.
Construction Environment: Avoid outdoor construction in severe weather such as heavy rain, strong wind, sand dust and high-temperature exposure. The base surface shall be dry, solid and free of dust and oil to ensure firm installation of keels and hangers and prevent hidden dangers of loosening, water seepage and panel falling off.
Installation Standards: Construct in strict accordance with layout numbers to ensure uniform joints and flat panels. Forcible prying and pulling are prohibited, and unauthorized adjustment of hanging points is not allowed to ensure uniform stress and neat facade.
On-site Processing Prohibition: Random on-site cutting, grinding, hole opening and welding on finished panels are forbidden to prevent damage to the spray coating, causing paint breakage, color difference and oxidation corrosion. All size adjustment and processing must be completed by factory prefabrication.
Cleaning & Maintenance: Clean only with clean water or neutral detergent. Strong acid, alkali and organic solvents are prohibited. Avoid hard sharp impact and scratching. Regularly check the tightness of hangers and bolts to eliminate hidden dangers.
Temperature Deformation Adaptation: Standard expansion joints shall be reserved for large-area wall installation to adapt to thermal expansion and contraction, effectively avoiding common construction problems such as arching, uneven gaps and edge warping caused by temperature changes.
